Welcome to the sustainable
development
|
|

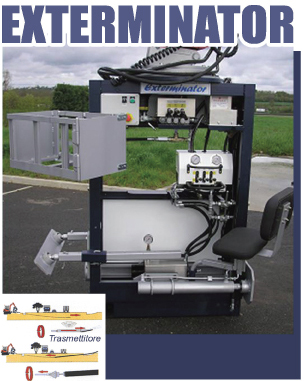

Drilling system for
small horizontal
directional trenchiess works
|
Ours trophies
2007 - VST exhibition (trenchless cities) INNOVATION category 1st price
2008 - International exhibition of inventions - Silver medal |
| |
|
 |
Specifications
sheet
Power :
- Upward thrust: 10 tons
- Traction: 10 tons
- Rotation torque: 1800 kilo-newton
Weight :
- Unloaded without rods: 720 kilograms
Dimension :
- Width: 70 centimeters
- Lenght : 110 centimeters
- Height : 175 centimeters
Hydraulic power :
- Minimum discharge : 63 liters / minute
- Pression : 210 Bars
Rod :
- Diameeter : 45 millimeters
- Useful lenghth : 50 centimeters
Rod curvature radius :
- 27 meters
Pilot drilling :
- 75 millimeters
Type
of injection :
- Water : 12 liters / minute
Reaming capacity :
- 300mm maxi for layng pipes dia. 250mm
Drilling length :
- Maximum : 100 linear meters
Drilling depth :
- Maximum : 20 meters |
Perforazione in roccia |
Lavoro in prfondità |
Perforazione in terreni difficili |
|
his technology can install pipes
connections for water, electricity, gas, waste, fibre optics in
diameter from 25 mm to 250 mm
It works as well above ground as an excavation.
It operates via the hydraulic power supply of a mini-digger.
The system offers lot of benefits:
- Save energy:
- All of the equipment can be transported by
a single truck
- Powered exclusively by hydraulic system
of a mini-digger
- No diverted traffic
- Preserve environment: no destruction of sites
- No waste and rubbish
- Work in small spaces, ideal to work in urban
environments
- Drill through all kind of soils
|
Perforazione in scavi
|
Nessuna
deviazione al traffico veicolare |
Connessione delle tubature gas |
Connessione
delle tubature acque di scarico |
|
| |
|
